Ready to deploy, Smart Sachets Dispenser Mechanism for Vending Machines!
Customized Sachet Dispenser mechanisms for use in third party Vending machines. It has simple 3 pin digital interface to connect to your microcontroller, PLC or digital/analog circuits! Smart Sensors indicate to you when dispenser is empty
We have developed a sachet dispenser mechanism that can be installed easily into third party vending machines, easily in a versatile configuration possiblities! This dispenser comes with an easy to use 3 pin Digital interface that allows you to control
  • When to dispense a sachet
  • Indicates back to your system when a dispenser is empty so that it can stop taking orders for that sachet
  • Multiplexing for higher capacity: It allows multiplexing of multiple dispenser units (1-14 nos can be multiplexed) to ensure higher capacity of sachets to be dispensed of same kind
  • Dispensing Multiple types of sachets: They can also be configured in such a way them so that each dispenser dispenses different kind of sachets.
  • Best part - Customization to any size: We can customize these to any size sachets you may want to be dispensed with same hardware and software interface

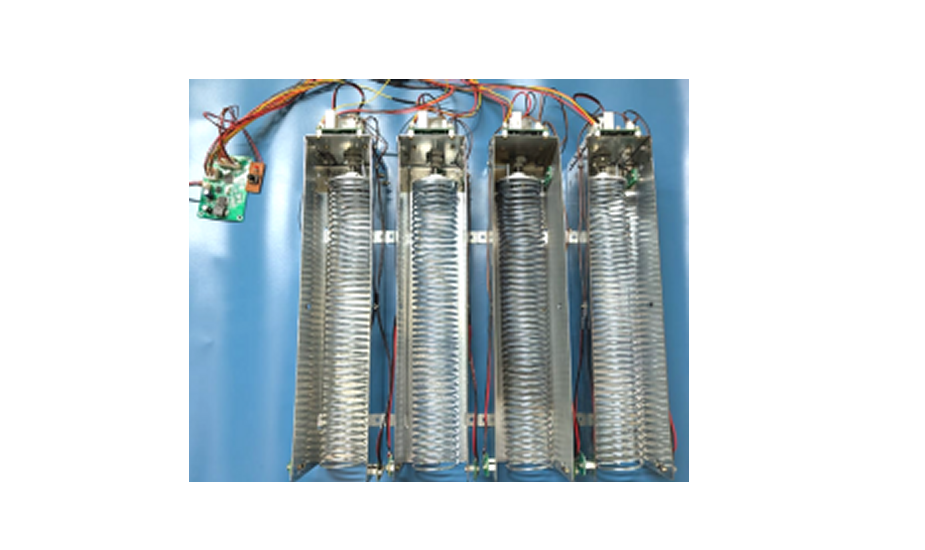

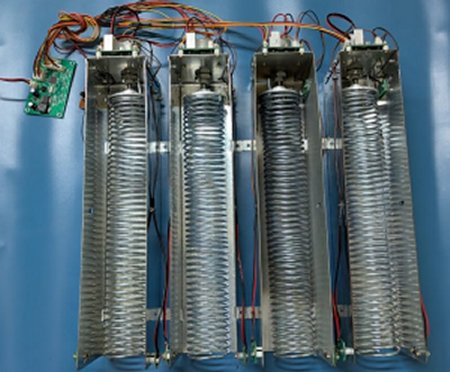

Top view of sachets dispenser Mechanism for Vending Machines!

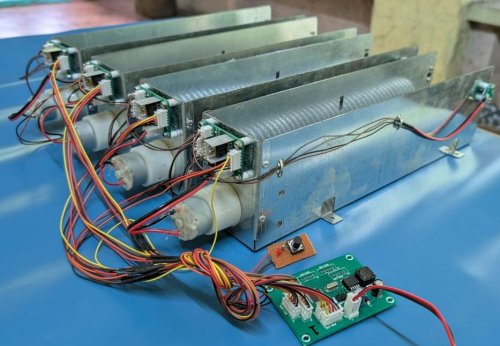

Back view of sachets dispenser Mechanism for Vending Machines!

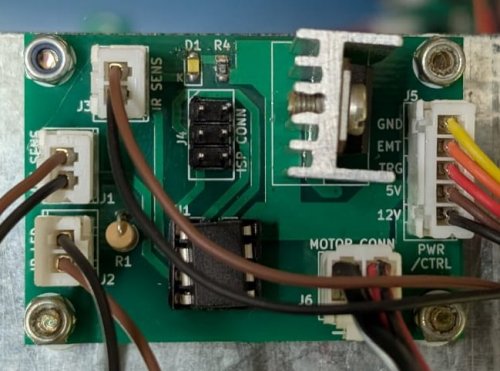

Dispenser controller Board

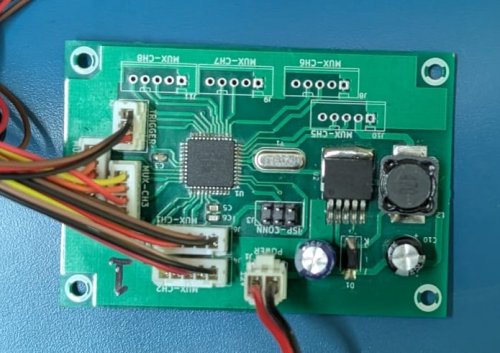

14 channel multiplexer Board

Features

  1. System dispenses sachets automatically when a trigger is received — no manual handling required.
  2. Multi-Channel Support (MUX System)
    • Supports up to 4 or 8 dispensing channels — system chooses the first available one.
  3. Single Button / Trigger Operation
    • Dispensing is activated by a single trigger input (e.g., push button, sensor, or signal from another machine).
  4. Smart Channel Selection
    • The system automatically detects which channel has sachets available and selects it for dispensing.
  5. Sachet Availability Indicator
    • A status LED or output shows whether sachets are available or empty.
  6. Precision Single Sachet Dispense
    • Each dispense cycle releases exactly one sachet using motor and sensor feedback — avoids error.
  7. Empty Detection (Dispenser Unit)
    • IR sensor detects if sachets are present or not — the system won't attempt to dispense if empty.
  8. Visual Feedback
    • Status indicators (like the EMPTY LED) give immediate, understandable feedback to users.
  9. Can be used as a single dispenser or as part of a larger system with multiple dispensers.
  10. Our system was ability to dispense 4 or 8 different sachets at same time
Working of Sachets Dispenser Mechanism for Vending Machine!
