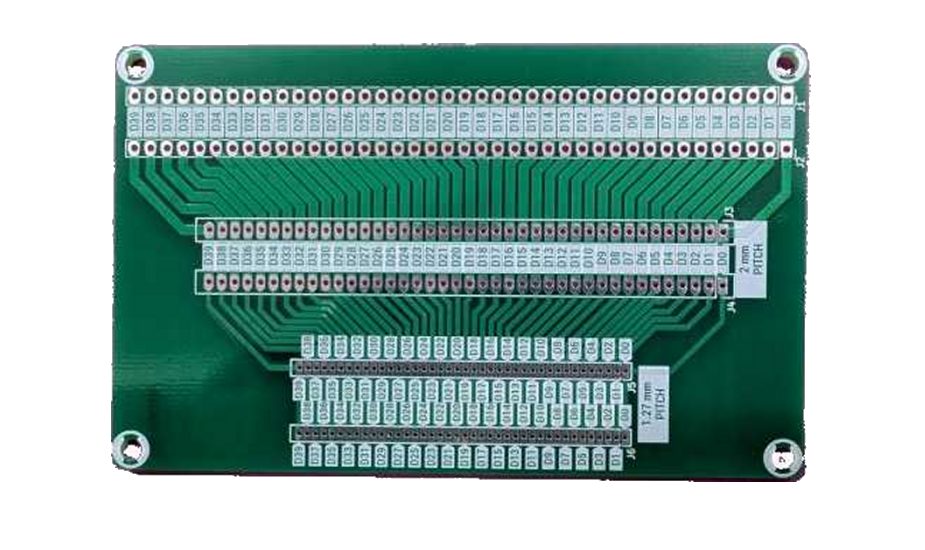

40 pin - 1.27mm (50 mils), 2mm (79 mils) and 2.54 mm (100 mils) pitch header breakout Board
Utility PCB. Interface up to 40 pins, any pitch connector headers using this breakout supplied with all standard size berg stick headers.
40 pin - 1.27mm (50 mils), 2mm (79 mils) and 2.54 mm (100 mils) pitch header breakout Board
This Berg Stick Breakout Board acts as an adapter is useful for interfacing electronic modules which contains non standard connectors. The breakout board contains headers with different pitch sizes like 2.54mm, 2mm, 1.27mm. Quickly convert cables from different pitches using this board.

Also this board has been designed with tracks on both side so it can carry maximum amount of current.

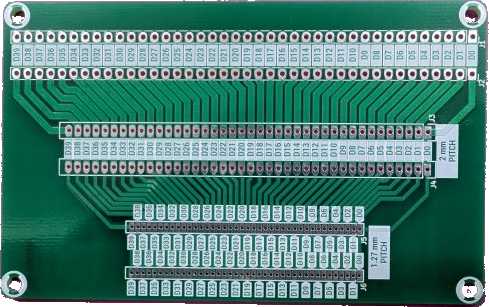

Top view

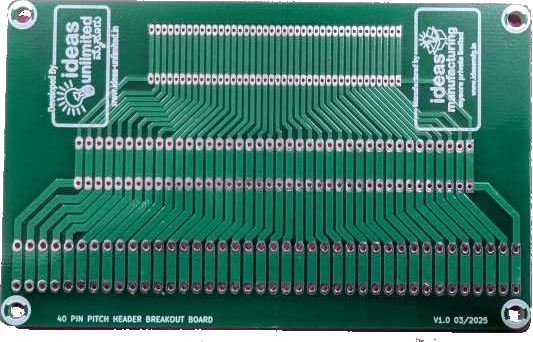

Bottom view



Example for using Header Breakout Board

Here, a 5V GPS module with 2.54mm pitch output connector is interfaced with 1.27mm pitch header in the breakout board which makes it easy for the developers to handle during developing phase or can be used during prototype development, testing etc.,
